Microtubular Heaters
Compact, high-performance microtubular heaters engineered for accurate temperature control in space-constrained industrial applications.
For technical details, custom configurations, and pricing, please contact our engineering team.
Request a quote!
Microtubular Heaters – Advanced Performance in Compact Dimensions
Microtubular heaters represent the most technologically advanced expression of compacted MgO electric heating elements. Designed for applications where installation space is limited and thermal demands are high, they combine compact dimensions with outstanding performance.
These heating elements deliver thermal efficiency in space-constrained environments, achieving power outputs of up to 9 W/cm² and operating temperatures of up to 600 °C. Their design allows dimensions to be precisely tailored to the available installation space, ensuring optimal integration into complex systems.
For effective heat transfer, microtubular heaters must be pressed directly against the working surface, allowing heat to be delivered exactly where it is needed.

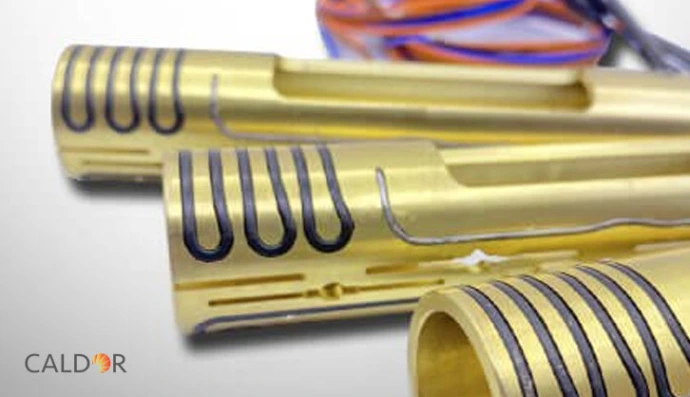

Originally developed for hot runner systems and plastic injection molding, microtubular heaters have since proven their versatility and are now widely used across a broad range of industrial applications requiring precise, reliable, and high-temperature heating in compact assemblies.
Key Features
- Advanced MgO Compaction Technology : Compacted magnesium oxide insulation ensures excellent thermal efficiency and long-term stability.
- Stainless Steel Casing : Robust stainless steel sheath provides high mechanical strength and resistance to demanding industrial conditions.
- High Operating Temperature :Capable of reaching casing temperatures up to 750 °C, depending on the application.
- Standard Power Supply : Designed for 230V operation as standard, with customization available on request.
- Integrated Thermocouple Option : Built-in Fe–CuNi (J-type) insulated thermocouple, positioned at the bottom for accurate temperature control.
- Supplied with PTFE-insulated nickel leads (1000 mm standard) for reliable electrical connection.
- Multiple Section Geometries : Available in flat, squared, and round sections to suit different installation requirements.
- Flexible Design & Bending Capability : Defined minimum bending radius depending on size, allowing precise adaptation to compact layouts.
Industrial Applications
Microtubular heating elements are widely used in applications where compact design, precise temperature control, and high operating temperatures are required. Typical application areas include:
Hot runner systems
Plastic injection molding machines
Packaging machinery
Automotive components and assembly systems
Industrial tooling and molds
Footwear machinery
Specialized industrial equipment with limited installation space

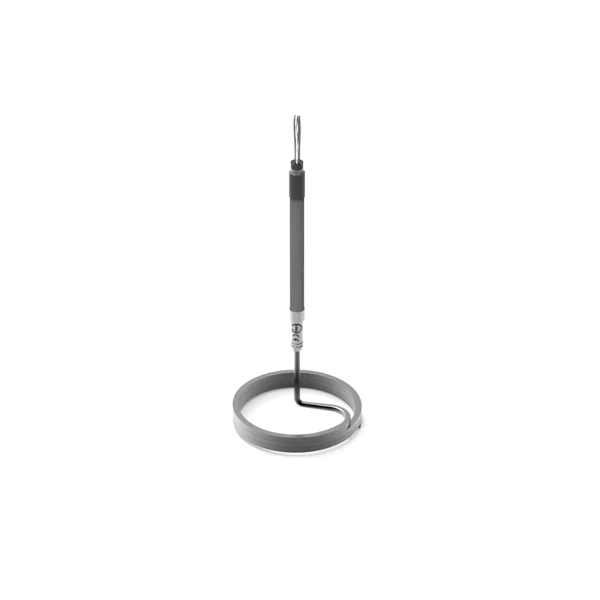

Mini Microtubular Heater Series
Insulating material: Compacted MgO
Sheath material: Stainless steel
Maximum sheath temperature: 750 °C (depending on application)
Minimum bending radius: 3 mm
Supply voltage: 230V (standard)
Built-in thermocouple: Not available
Electrical connection: PTFE-insulated nickel cable, 1000 mm length (standard)

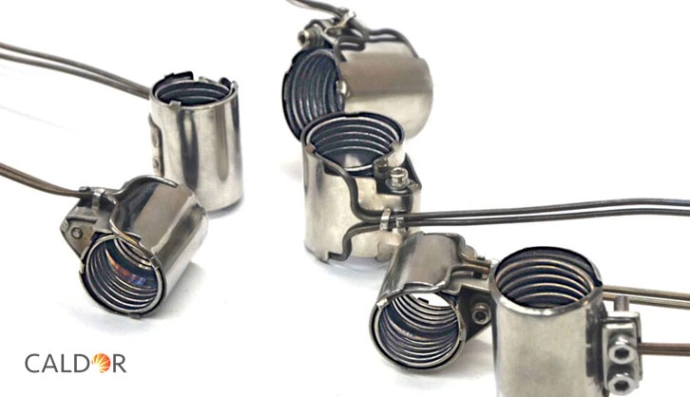

Microtubular Heater with Reflector Tube
Microtubular heaters with reflector tube, optionally equipped with a reflector tube, offer higher thermal load, more efficient heat transfer, and increased mechanical protection of the heating element.
Controlled temperature measurement is possible using a spiral or integrated thermocouple. The reflector tube can be supplied for all heater sections in the HMC series, in various diameters and lengths, with or without slots and holes.
Packaging Solutions
Microtubular heaters designed and manufactured for packaging and wrapping machinery:
sealing bar heating
continuous circular welding machines (flow-pack)
thermoforming machines
blister packaging
packaging of tissue products

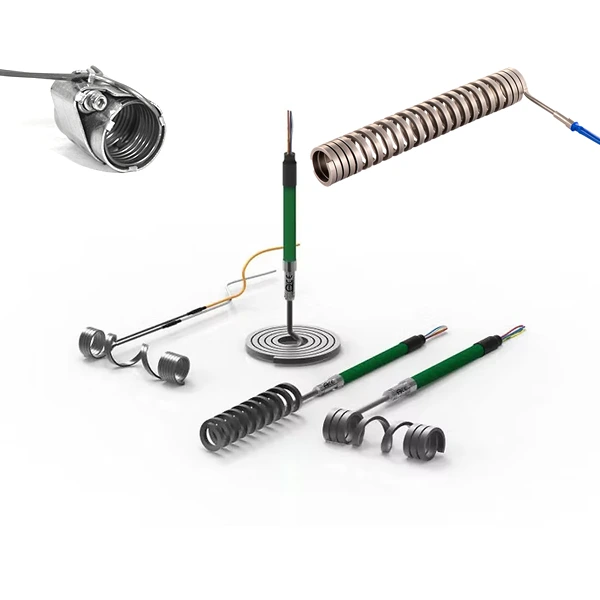

Thanks to their versatility, microtubular heaters can be spiraled and shaped into various forms, sizes, and power ratings. They are supplied with an integrated thermocouple or an external temperature sensor.
Information Required to Obtain a Quote
Provide the following details so we can tailor the right solution for you:
Caldor specializes in the design and manufacturing of high-performance microtubular heating elements, engineered to provide precise, efficient, and stable heat transfer in applications where space is limited and thermal accuracy is critical. Our microtubular heaters are widely used in hot runner systems, plastic injection molding, packaging machinery, automotive components, and specialized industrial equipment requiring compact, high-temperature heating solutions.
Caldor microtubular heaters are distinguished by their advanced MgO-compacted construction, compact dimensions, and high power density, enabling uniform heat distribution and rapid thermal response. Capable of operating at temperatures up to 600 °C, these heating elements ensure long service life and consistent performance even under demanding thermal and mechanical conditions.
Each microtubular heater is custom-engineered to meet specific application requirements. Available options include tailored dimensions, wattage and voltage configurations, optimized power distribution, integrated thermocouples or resistance sensors, and a wide range of lead and connection types. For efficient heat transfer, the elements are designed to be pressed directly against the working surface, ensuring precise thermal control.
At Caldor, we combine in-depth engineering expertise with responsive technical support. Our engineering team works closely with customers throughout the design and specification process, delivering solutions that integrate seamlessly into existing systems while maximizing efficiency and operational reliability. From initial consultation to long-term technical support, we are committed to delivering dependable heating solutions that add measurable value to your processes.
We appreciate your interest in Caldor microtubular heating technology and look forward to supporting your projects with reliable, precision-engineered solutions.
Technical & Commercial Inquiries for Custom-Engineered Microtubular Heaters
Contact our engineering team to request detailed quotations and submit technical specifications for custom-designed, application-specific microtubular heating elements. We provide expert engineering support and full design flexibility to meet the thermal, dimensional, and performance requirements of space-constrained industrial applications.
