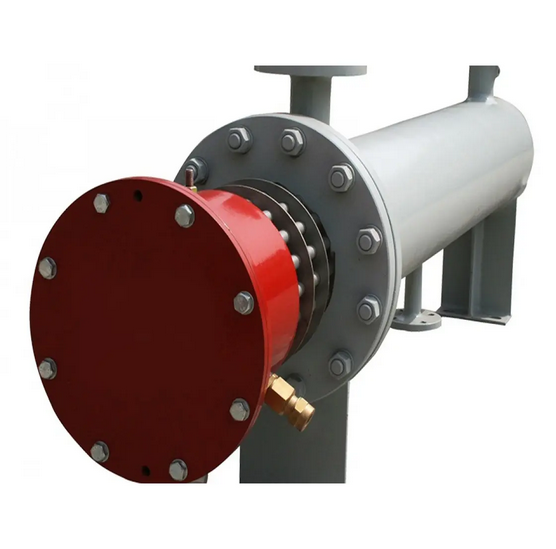

Flanged Tubular Heating Elements
EX-Proof (Zone 0, Zone 1, Zone 2)

Advanced Technical Features
Our explosion-proof flanged heaters are designed to meet the most demanding industrial requirements:
Rated power: up to 750 kW on a single flange.
Immersion length: up to 6 meters, adaptable depending on the application.
Construction materials: AISI 304/316, Incoloy 800/825, Inconel 600/625, Hastelloy, Titanium, Copper.
Heating element diameter: 8.5 mm, 12.5 mm, 16 mm.
Protection degree: IP40, IP55, IP65, IP66, IP67.
Certifications: ATEX II 2G Ex d IIC T6-T3 Gb, according to EN 60079-0/1 and IECEx.
Optional accessories: thermostats, thermocouples, PT100 sensors, temperature transmitters, anti-condensation heaters, certified cable glands.
Superior production capacity: up to 750 kW on a single flange, compared to 500 kW for competitors.
Design flexibility: customized solutions for specific applications, including replaceable heating elements without shutting down the system.
High-quality materials: use of advanced alloys for durability and optimal performance. Tool storage
International certifications: products comply with ATEX and IECEx standards for hazardous areas.


Application Areas
Our products are ideal for a wide range of industrial applications, including:
Heating liquids and gases: fresh water, salt water, synthetic oils, process gases.
Petroleum and petrochemical industry: crude oil heating, molecular regeneration, butane/propane vaporizers.
Thermal power plants and industrial installations: heating of tanks, glycol boilers, KO drums.
Frost protection: fire water storage systems, frost protection.
Superior Quality and Maximum Safety in Hazardous Areas
Caldor Industrial Heating produces EX-Proof tubular flanged heating elements, specially designed for Zones 0, 1 and 2, being one of the leading manufacturers in Europe in this field. We offer an extensive range of products to meet various industrial requirements.
-
Durable and Reliable Materials
We use high-quality materials, such as AISI and Incoloy, guaranteeing performance and durability in difficult operating conditions.
-
Advanced Production Capacity
We have modern production technologies and advanced platforms for rigorous testing of our products, ensuring compliance with the highest safety and performance standards. Our capacity allows the manufacture of tubular flanged heaters with powers up to 750 kW on a single flange, including the manufacture of their corresponding housings.
